The Prime Series Component System is a new generation of factory replacement speaker delivering authentic Rockford Fosgate sound. The R165-S is a dedicated 2-way component system utilizing a Mica injected polypropylene cone for extended frequency response and accommodates direct OEM installation. The tweeter features a Mylar¨ balanced dome to reproduce crystal clear highs, an in-line crossover for simplifying installation, and accommodates flush, surface and angle mounting.
FEATURES AT A GLANCE
- Mica-injected polypropylene cone
- Foam surround

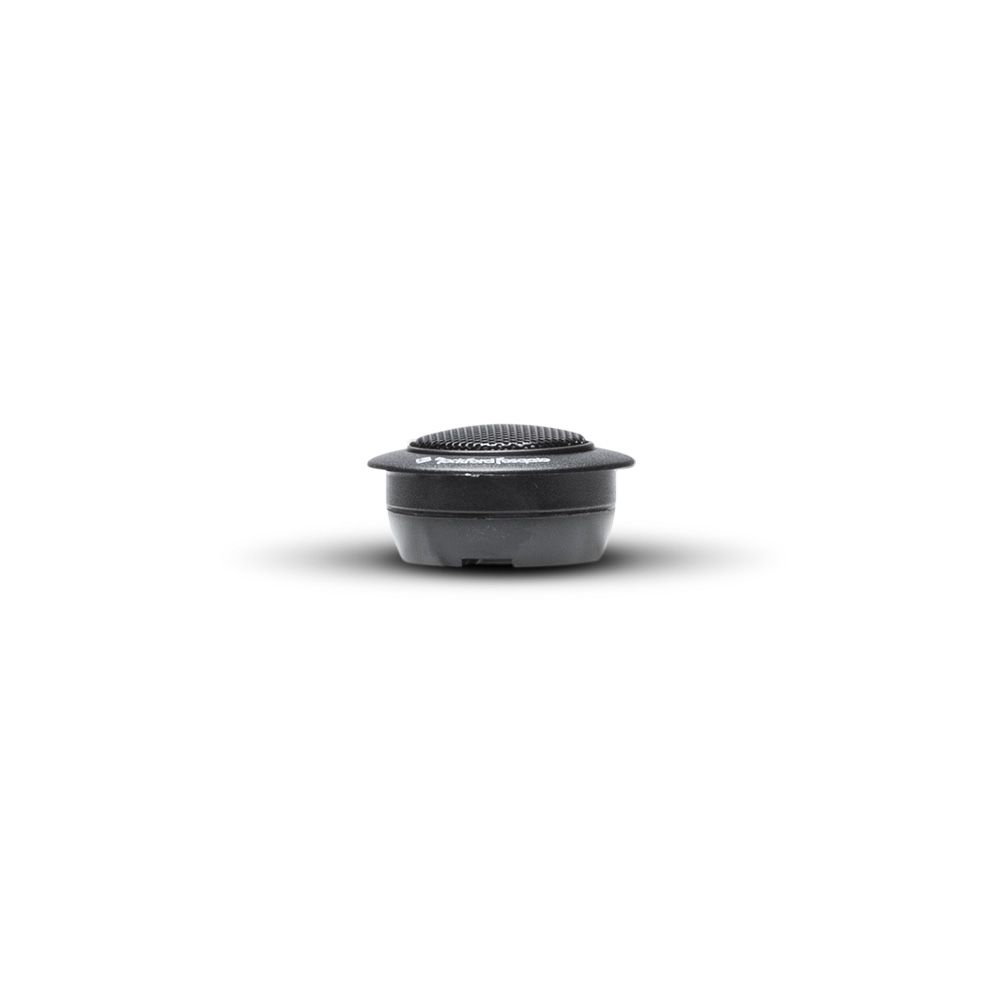

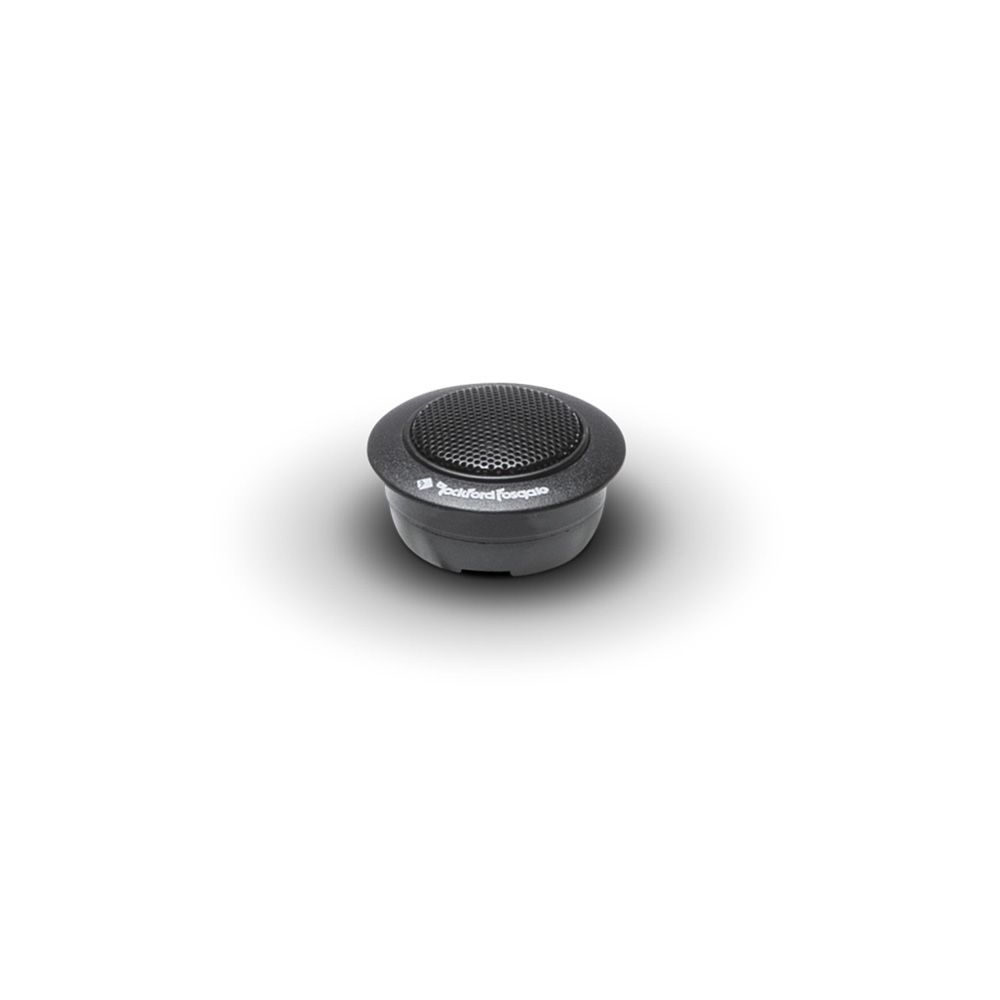

- 1/2″ (13mm) Mylar® balanced dome
- Stamped steel basket
- Sold in pairs (2 each)
- 1 Year Warranty
Τεχνικά Χαρακτηριστικά / Specifications
- CEA-2031 Compliant
- Tweeter Mounting Depth: 1.06″ (26.88 mm)
- Speaker Type: Component System
- Midrange Mounting Depth: 1.97″ (50.1 mm)
- Tweeter Size (Nominal Diameter): 1.0″ (25.4mm)

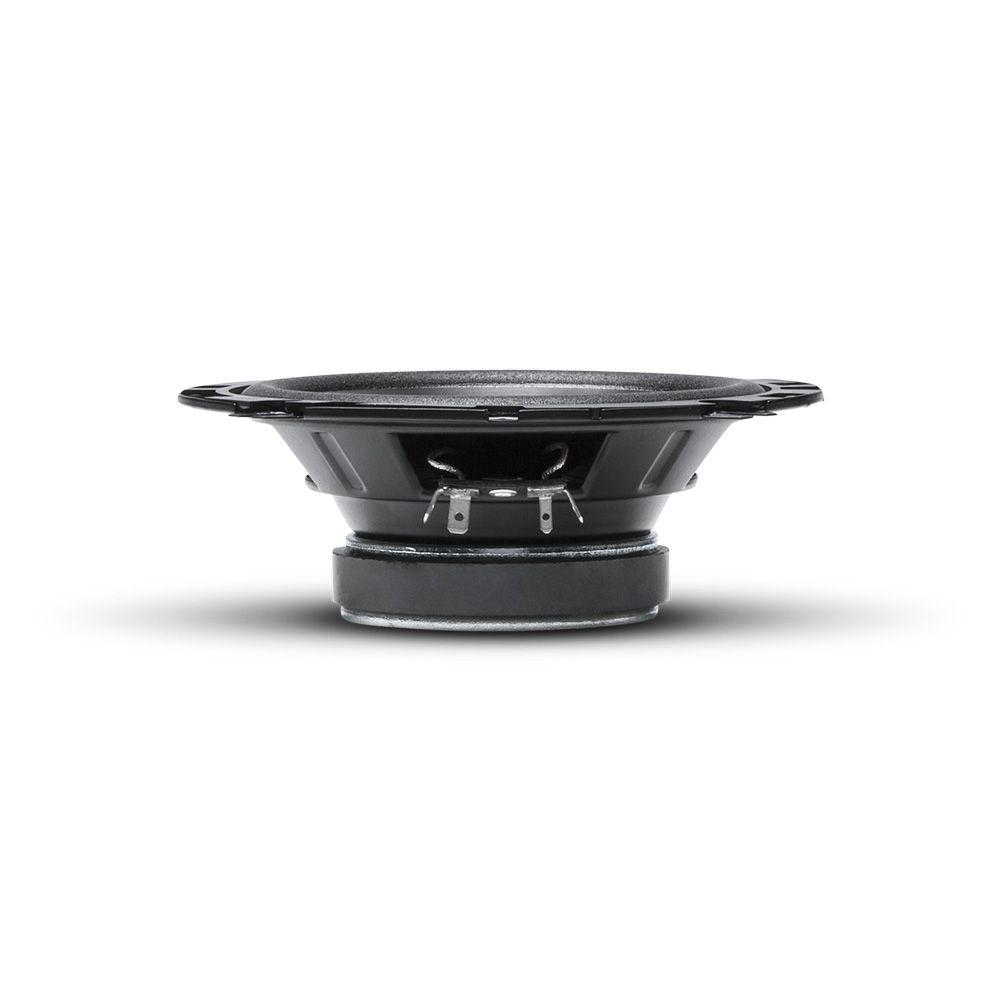

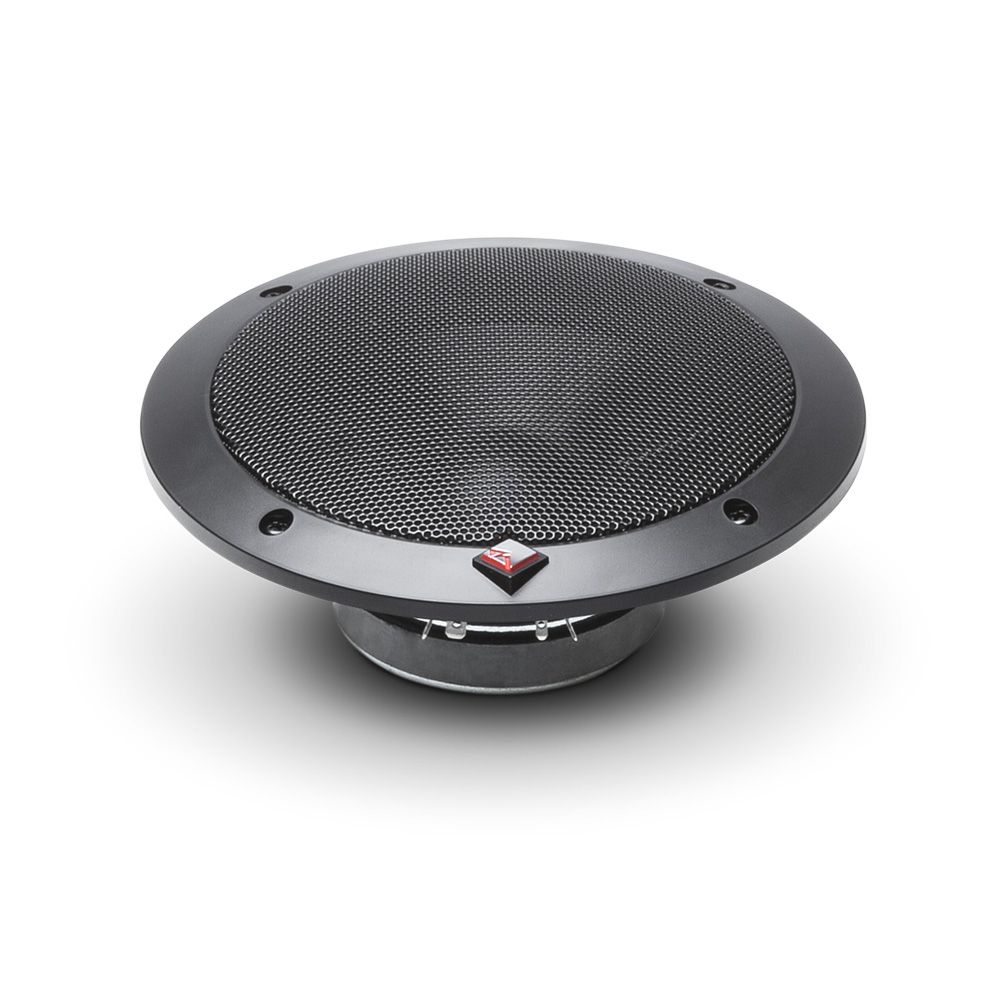

- Midrange Size (Nominal Diameter): 6.5″
- Power Handling (RMS): 40 Watts RMS, 80 Watts Max
- Shipping Weight: 5 Lbs. (2.26 kg)
- Frequency Response (Hz): 60Hz – 20kHz
- Crossover: Tweeter High-Pass (HP): 12kHz @ 6dB/octave
- Nominal Impedance (Ohms): 4-Ohm
- Sensitivity (dB @ 1W/1M): 89
- Grille/Trim Ring Included: Yes
- Mounting Hardware: Yes
